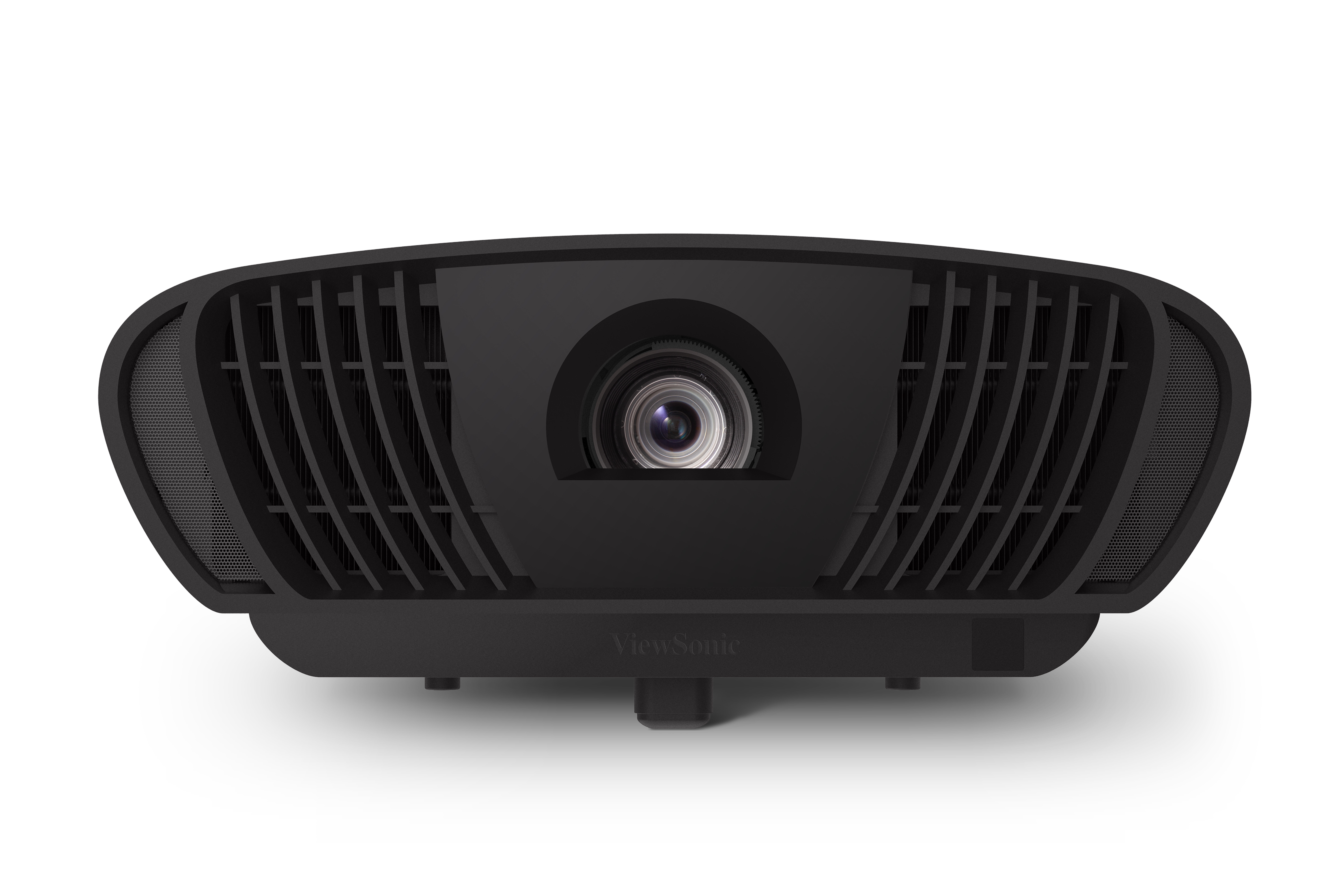

OVERVIEW

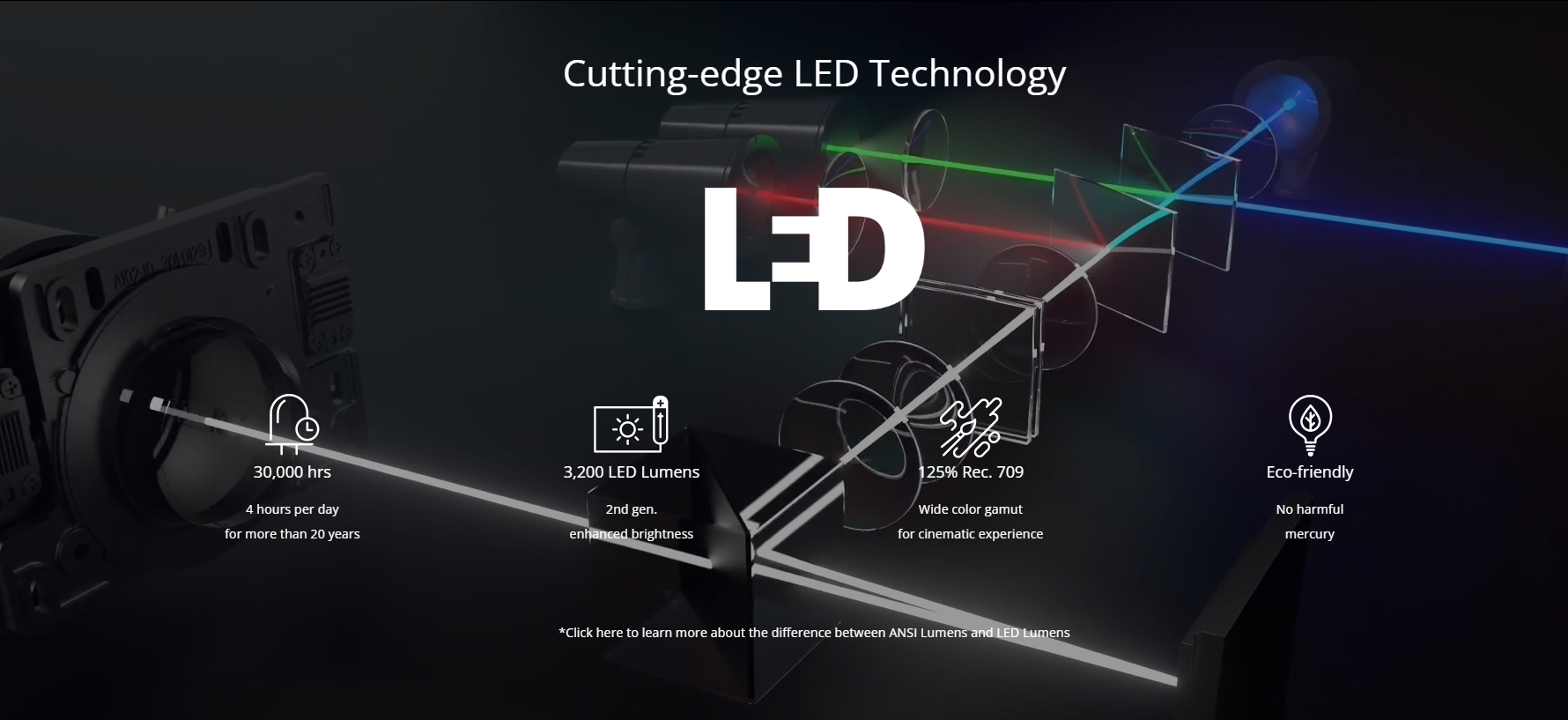

ViewSonic’s X100-4K+ is a 3,200 LED Lumens 4K UHD home cinema projector of superior performance and great
value. Fulfilling movie lovers' dreams with 2nd generation LED technology, for cinematic colors and reliable light
source life, low fan noise (20 dB), wide H/V lens shift and optical zoom combined into a proprietary design, the X100-
4K+ serves as a professional choice for every home.
Ultimate Viewing Experience with 4K UHD
Enjoy the clear detail of true Ultra HD with 4X the clarity of Full HD. With
8.3 million pixels projection on your screen, all 4K movies, games,
sports, and streaming contents come to life in sharp details.
True-to-life Colors, Fill You with Wonder
True-to-life colors offered by ViewSonic’s proprietary Cinema SuperColor+™
Technology with 125% Rec.709 give you the vivid touch and feel for rich
emotional pleasure.

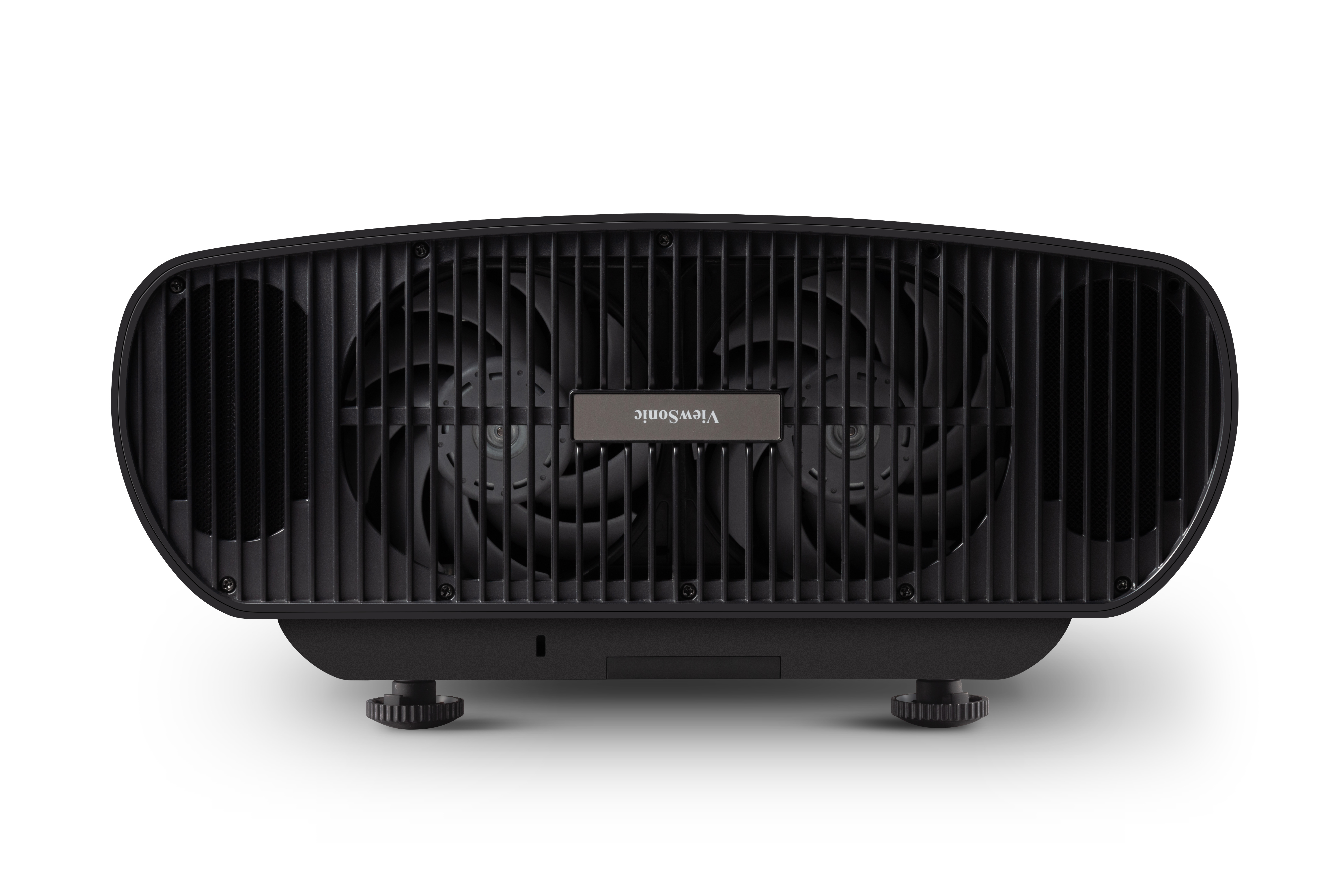

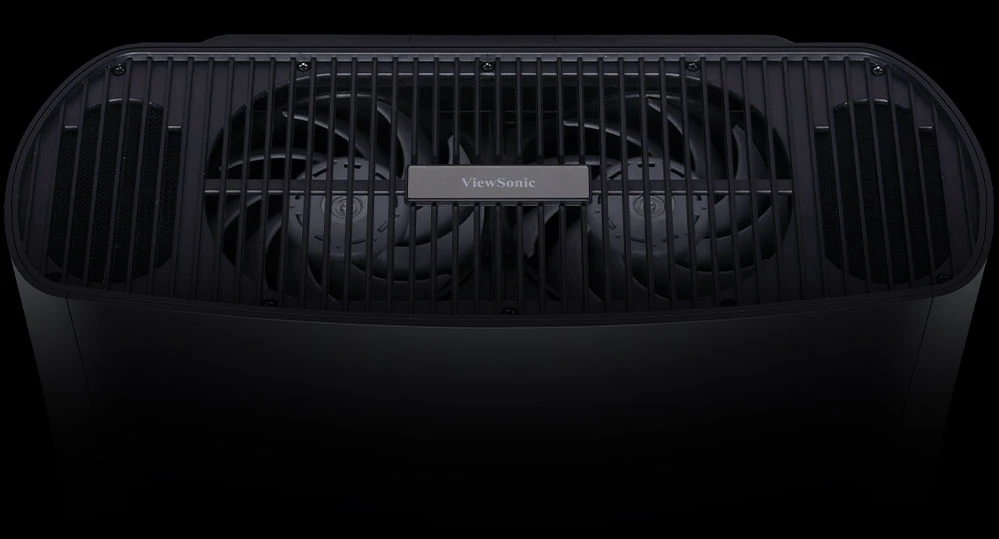

Extremely Low Fan Noise for Pure Viewing
With a 20dB fan noise lower than the ticking of a watch, you can be fully
immersed in the viewing experience. The secret lies in the ultra-silent cooling
fans’ efficient hyper-cooling with minimal vibration.
Instant Power On to Enjoy
Your Favorite Films Right
Away
Tired of staring at a blank screen waiting for the display to get started? Set up your own cinema in an instant with
the X100-4K+ and enjoy your favorite movies right away.
Unveil hidden details with Dynamic Black
Take in images with more depth given by Dynamic Black technology. It
automatically examines and provides customized high contrast
performance according to the brightness level of different scenes in the
input content, letting you see more dark scene details and the liveliness
of bright scenes.
Theater-Level
Harman Kardon Speakers
The dual speakers customized by Harman Kardon deliver vibrant and powerful sound for an all-around immersive experience whether you’re watching movies, music videos,or listening to a live
concert.
Flowing Movements all the
way
Lie back and immerse yourself in seamless viewing without a single

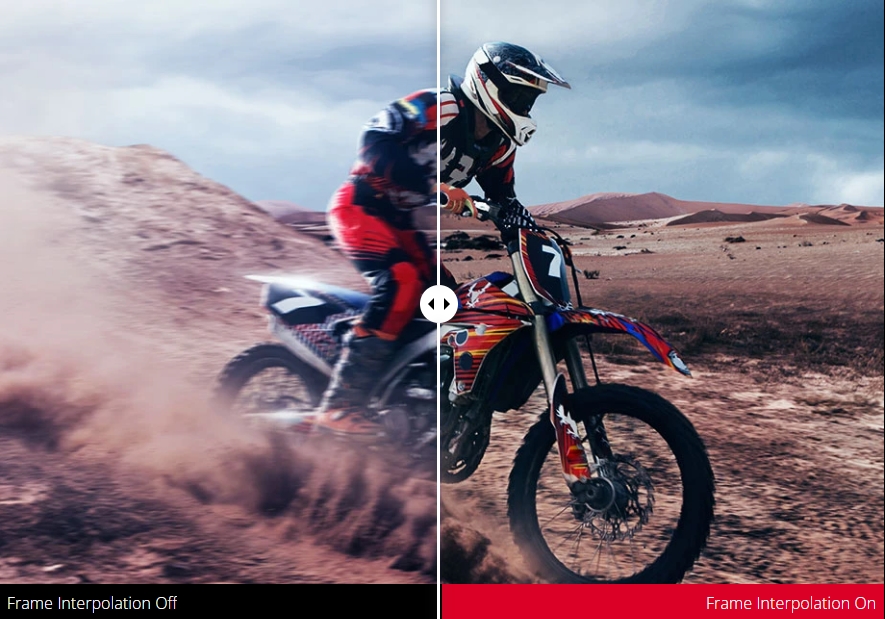

second missed. The X100-4K+ features Frame Interpolation technology,
which reduces motion blur and makes for smooth delivery of fast-moving
images.
ISF Certified Color Calibration Tools
ISF (Imaging Science Foundation) Certified Day and Night modes deliver
optimized color in both bright and dark environments. If needed, ISF-
certified technicians can provide on-site tuning of these settings for
customized image calibration that best fits your home.

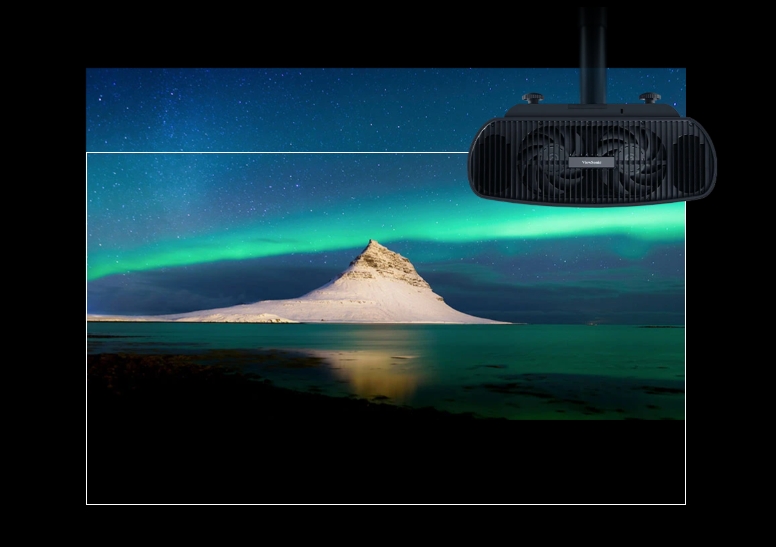

World’s 1st LED Home Cinema Projector
with Wide Lens Shift*

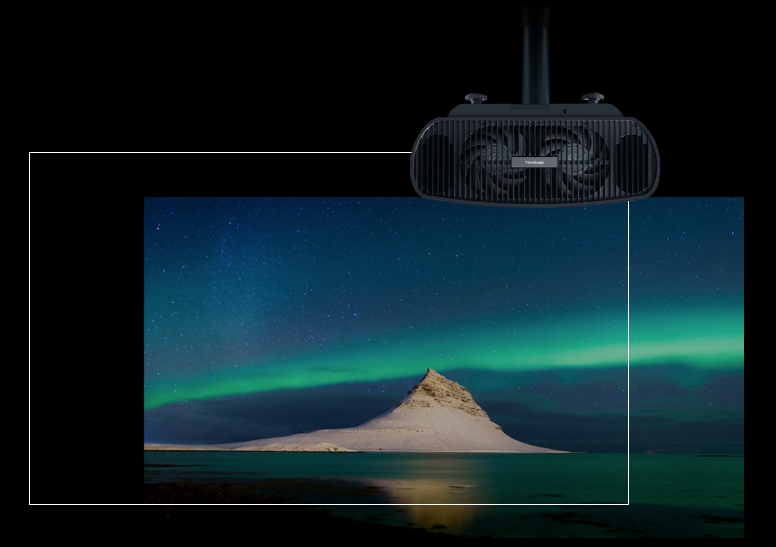

The X100-4K+ fits perfectly into nearly any home with a wide lens shift range (H: +/- 25%, V: +65%). Users can adjust the location of the projected image without moving the projector - no need

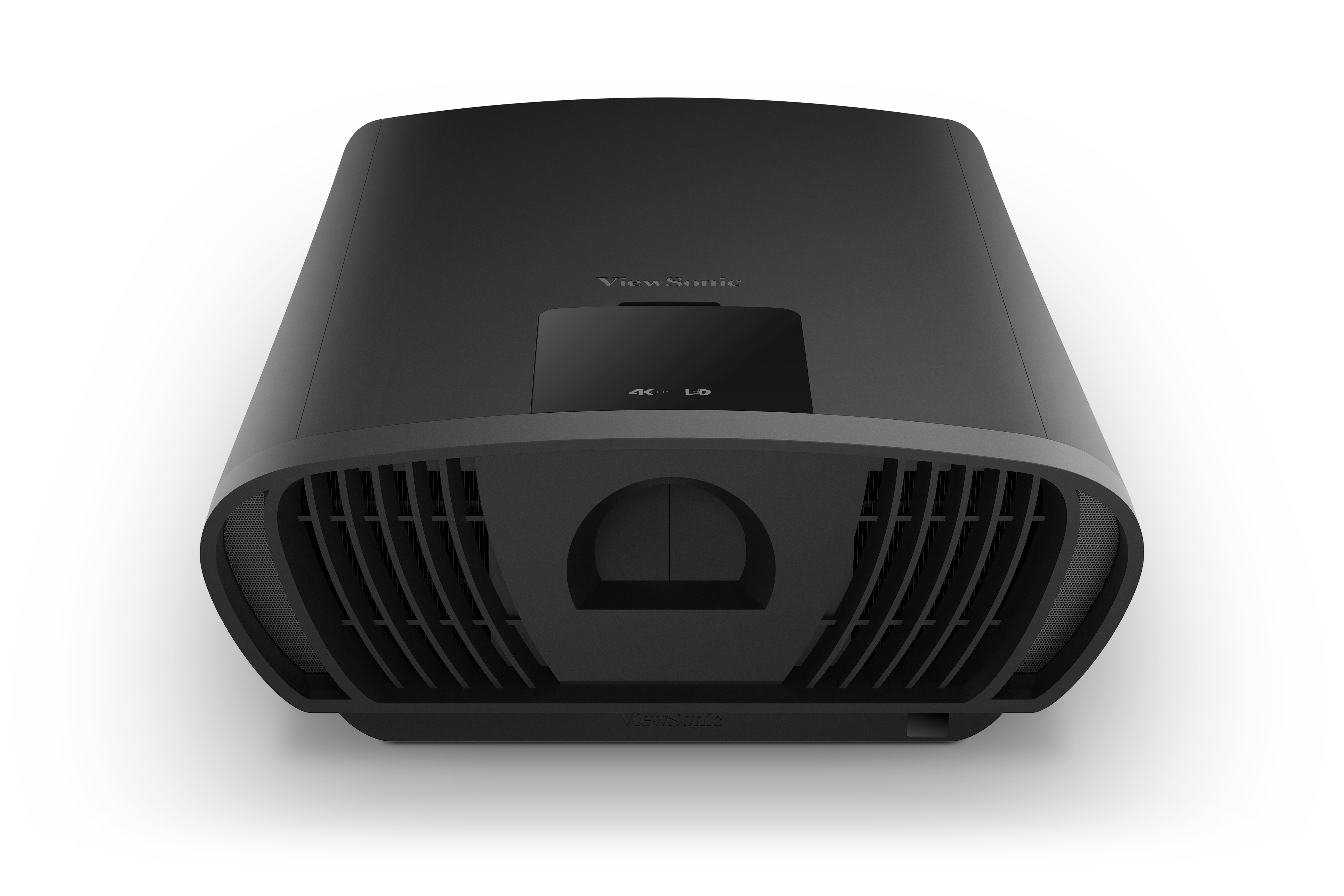

to renovate the interior design when mounting the projector.
*This claim is based on and limited to 4K UHD LED projectors under $4,000.
Multimedia Pleasure is just 1 switch away
The X100-4K+ comes with four HDMI 2.0 / HDCP 2.2 ports, providing
more-than-enough connectivity to increase the flexibility of your
entertainment experience, as well as ensuring your access to original 4K
quality content.
Get Your Cinema All Set at Once
With dual 12V trigger output connectivity, just power on the X100-4K+ and your home cinema will be all set, with the curtains closed and the
projection screen lowered automatically.

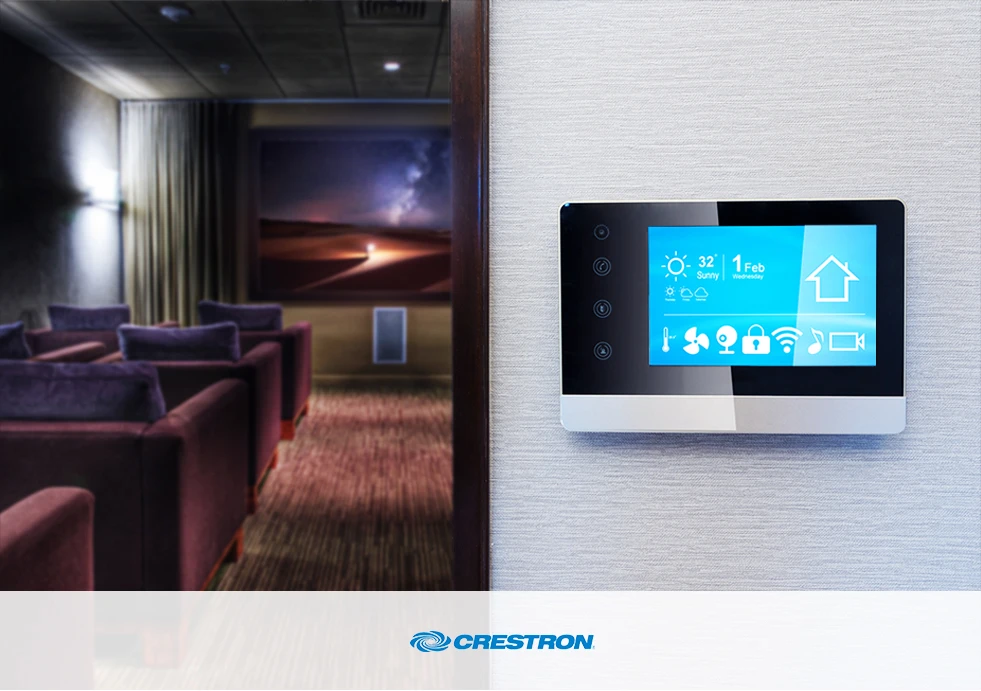

Simplify Your Home with Unified Smart Systems
The X100-4K+ comes with LAN control capability that is compatible with
Crestron, making it a perfect addition to your smart home.
Designed for a Premium Life Style
Streaming Heaven
Say goodbye to cable clutter and external devices. The built-in app center caters to all your entertainment needs. Enjoy your favorite apps from the projector to the big screen or download
them – all via the Internet.
*The Apps herein are for demo purpose only and are not preinstalled in the Product. The Apps and their trademarks or logos are the properties of their respective owners, unaffiliated with ViewSonic, and not sponsors or
endorsers of the Product.

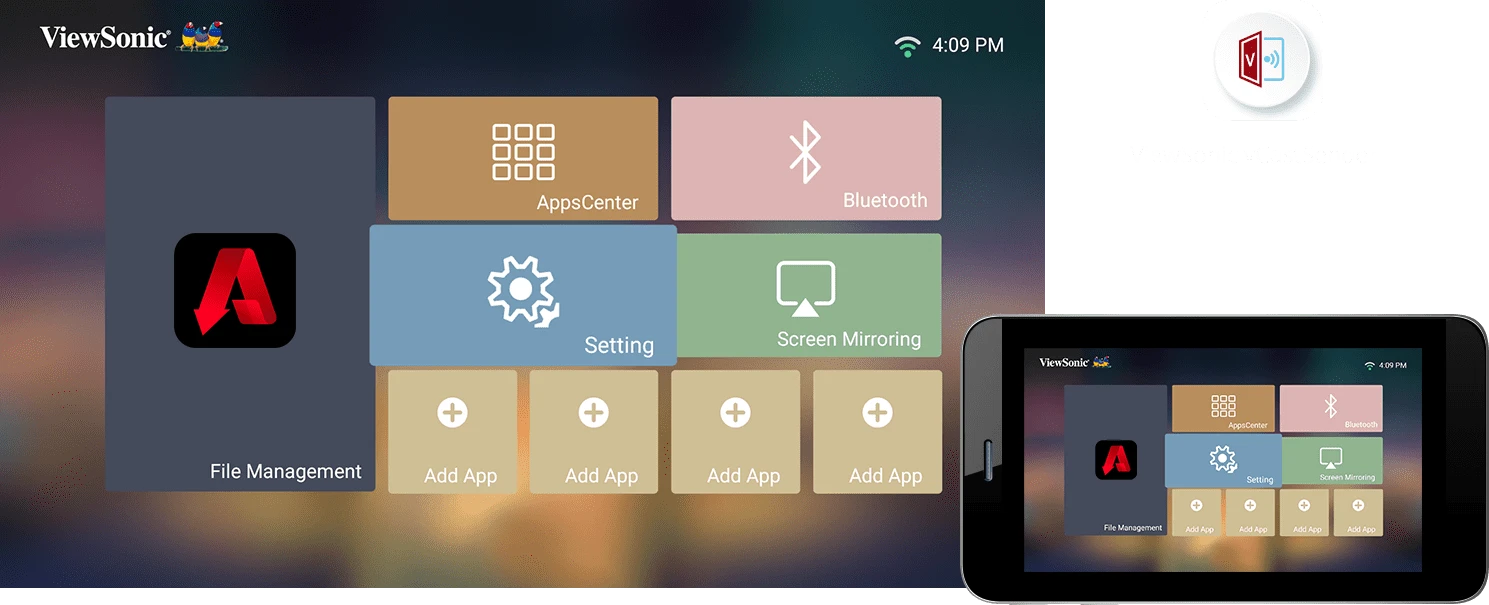

Intuitive Touch Control with your phone
Now you can turn your mobile device into an alternative powerful remote control – intuitive touch control, easy typing, and simple annotation on the big screen. Simply download the
ViewSonic vCastSender app on your phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in the app to get started.
Voice Control
The projector incorporates the latest voice activation services in the
market today. Voice control your projector via Amazon Alexa & Google
Assistant, a smart way to live - all under your command.

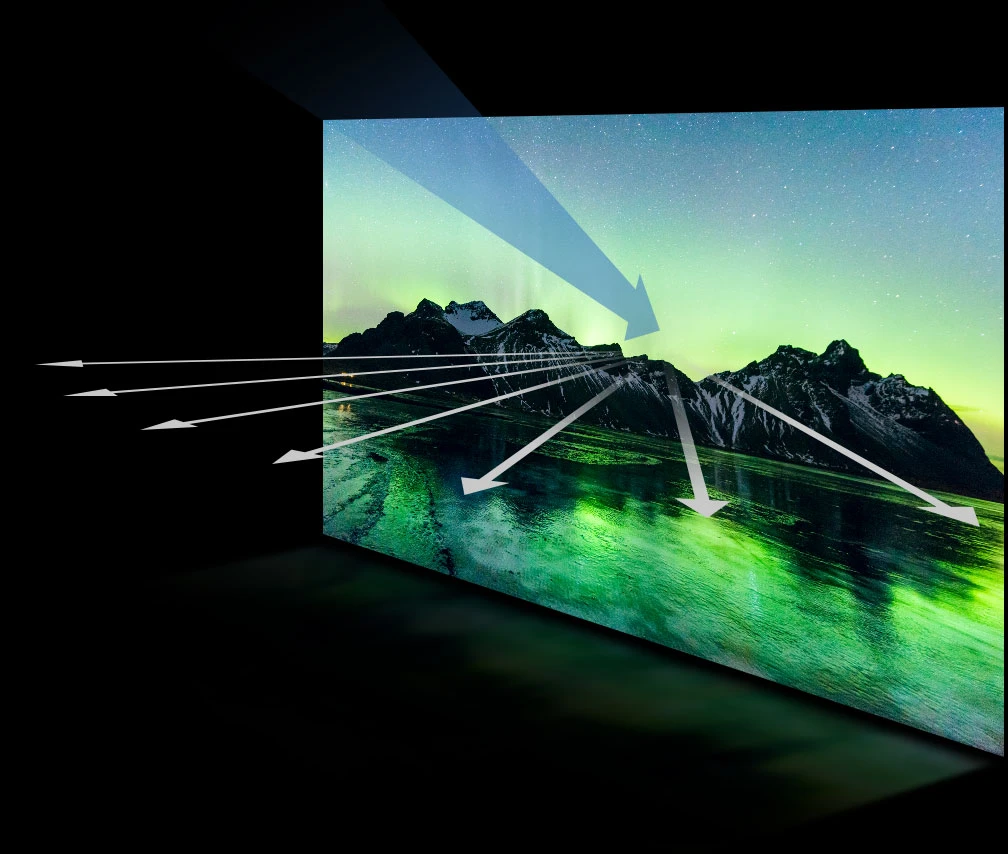

Eye Care
Utilizing reflective light, which bounces off the wall or projector screen
before hitting your eyes, the projector makes the viewing experience
virtually blue light free, less invasive to your sight and reduces eyestrain
over prolonged viewing periods.

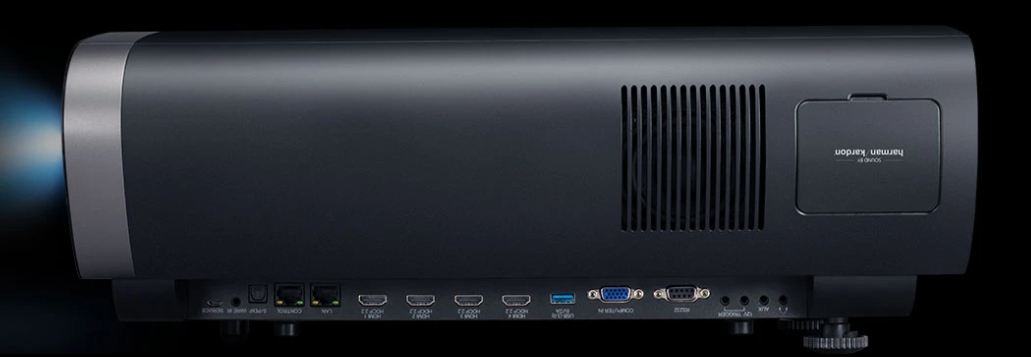

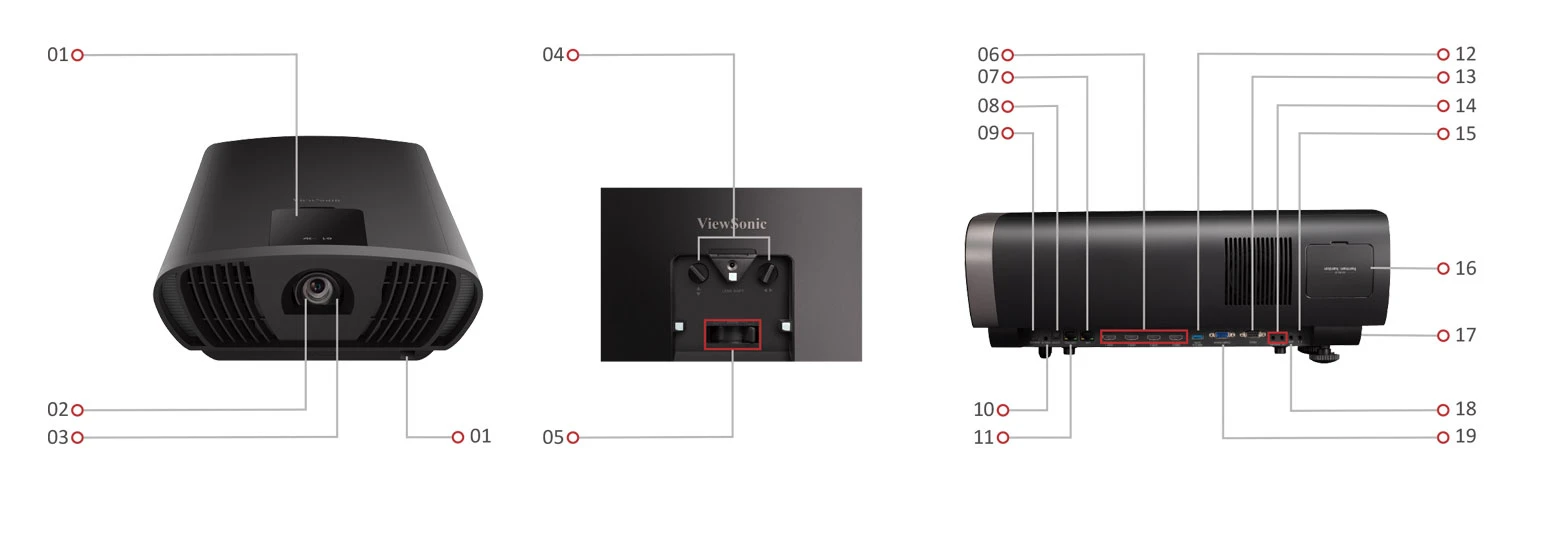

1. IR Receiver(Front & Top) 6. HDMI 2.0/HDCP 2.2 11. Control 16. Keypad
2. Lens 7. LAN 12. USB Reader 3.0(5V/2A) 17. Wi-Fi Dongle(Optional)
3. Motorized Lens Cover 8. S/PDIF Out 13. RS232 18. AUX
4. Lens Shift Control Knob 9. Service 14. 12V Trigger X2 19. Computer In
5. Zoom Ring 10. Wire IR 15. Audio Out
SPECIFICATIONS
Specification
Native Resolution: 3840x2160
Brightness: 3200 (LED Lumens)
Contrast Ratio: 4000000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (Normal): up to 30000
Lamp Watt: RGBB LED
Lens: F1.8-1.825, f=12.62-15.13mm
Projection Offset: 0%
Throw Ratio: 1.2-1.44
Optical Zoom: 1.2x
Image Size: 40”-200”
Throw Distance: 1.06m-6.37m , (100
Keystone: +/- 40° (V)
Lens Shift V. Range: Yes (+65%, -0%)
Lens Shift H. Range: Yes (+25%, -25%)
Audible Noise (Normal): 23dB
Audible Noise (Eco): 20dB
Local Storage: Total 16GB , (12GB available storage)
Resolution Support: VGA(640 x 480) to , 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P
Horizontal Frequency: 30K-97KHz
Vertical Scan Rate: 24-120Hz
Input
Computer in (share with component): 1
HDMI: 4, (HDMI 2.0, HDCP 1.4/2.2)
Audio-in (3.5mm): 1
3D VESA (Sync): 1
USB Type A: 2, (USB3.0 Reader x1,, USB2.0 Reader x1)
RJ45 Input: 1, (Internet)
Output
Audio out (3.5mm): 1
S/PDIF: 1
Speaker: 20W cube x2
USB Type A (Power): 2, (USB3.0 - 5V/ 2A x1,, USB3.0 - 5V/ 900mA x1,, share with USB A Input)
12V Trigger (3.5mm): 2
Control
RS232 (DB 9-pin male): 1 (Female)
RJ45: 1, (LAN control)
USB Micro B-2.0 (Services): 1
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz, (AC in)
Power Consumption: Normal: TBD, Standby: <0.5W
Operating Temperature: 0~40℃
Net Weight: 7.70kg (TBD)

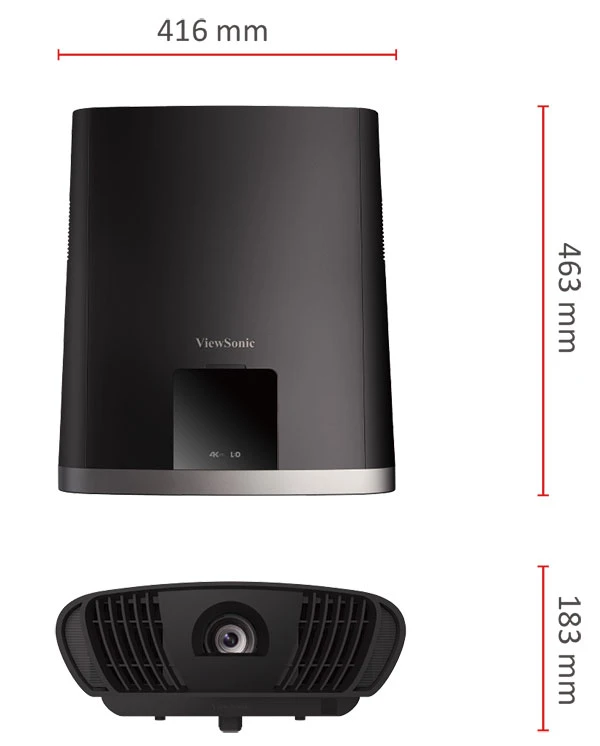

Dimensions (WxDxH) with Adjustment Foot: 416x463x183mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
